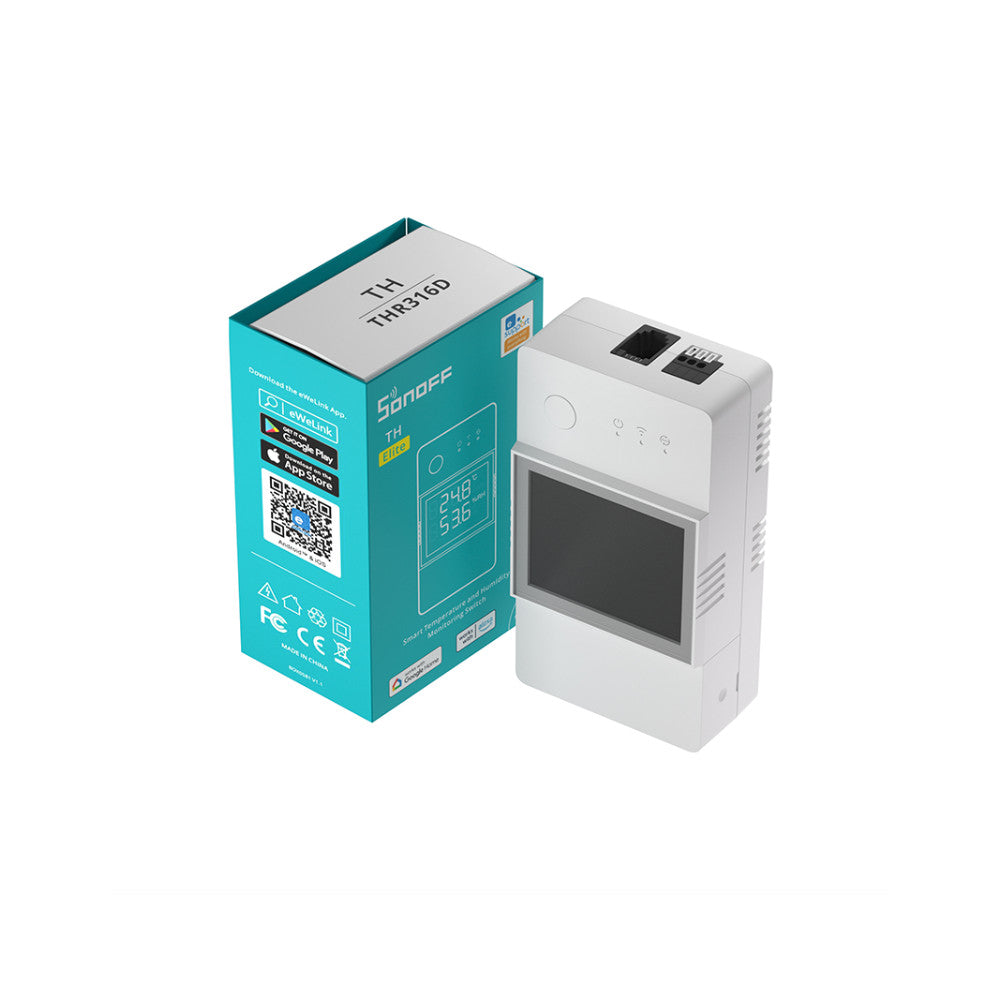

Sonoff Temperature and Humidity THR316D

Sonoff TH16 Elite is a Smart Temperature and Humidity monitoring switch. Sensors are sold separately.

It has an additional dry contact output for on/off and an LCD Screen for real-time monitoring.

Sonoff TH16 Elite displays temperature and humidity in real-time. You can preset thresholds to change device's state which will send a push notification to your phone app and trigger your automation.

Sonoff TH16 Elite keeps 6 Months' historical data accurate to the hour.

Smart Scene such as temperature, humidity, on and off is supported as a trigger. Home Assistant is compatible with control and automation through the eWeLink add-on.

TH16 Elite turns your traditional thermostat into a smart one and gives you an easy way to monitor the temperature and humidity.

The sensor connector is upgraded to RJ9,  supporting hot-plugging and making the connection more stable and reliable.

* Please do not use TH16 on Geyser's. We recommend the TH20 Amp for Geyser's.

** Requires a qualified electrician to install.

***Switches Require a Neutral Wire and 2.4Ghz WiFi and Internet**

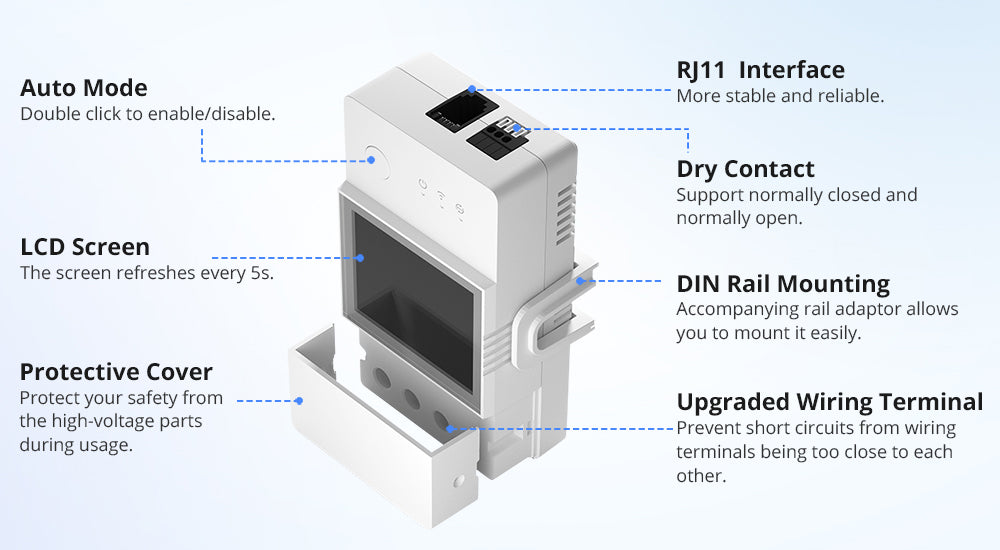

Features

• 16A Max load and additional dry contact output.
• LCD Screen. Real-time monitoring of temperature and humidity, the screen refreshes every 5 seconds.
• 6 Months of Temperature and Humidity Historical Data by Hour. Data can be exported in .xlsx format and is accurate to an hour.
• Local Automatic Control, Support's LAN control. You can set up 8 automatic control programs locally, reducing electricity bills and creating a comfortable environment.
• Voice Control works with Alexa and Google Assistant.
• 5 Second refresh interval.

Specifications

• TH16 Elite: 16 Amp Peak
• Model: THR316D
• THR316D Input/Output: 100-240V~ 50/60Hz 16A Max
• Dry contact: 5-30V, 1A Max
• Casing material: PC V0
• Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
• Color: White

Accessories

The RL560 sensor extension cable can connect the Sonoff temperature and humidity sensors to extend your device's distance.

THS01 and DS18B20 can be extended to 60M, and MS01 Soil Moisture Sensor can be extended to 10M.
