Sonoff Temperature and Humidity THR320D

Smart Geyser Switch (For geysers less than 200 Litres)

Sonoff TH Elite 20 AMP small geyser unit, Dry Contact for on/off and LCD Screen for real-time monitoring (5 second refresh interval).

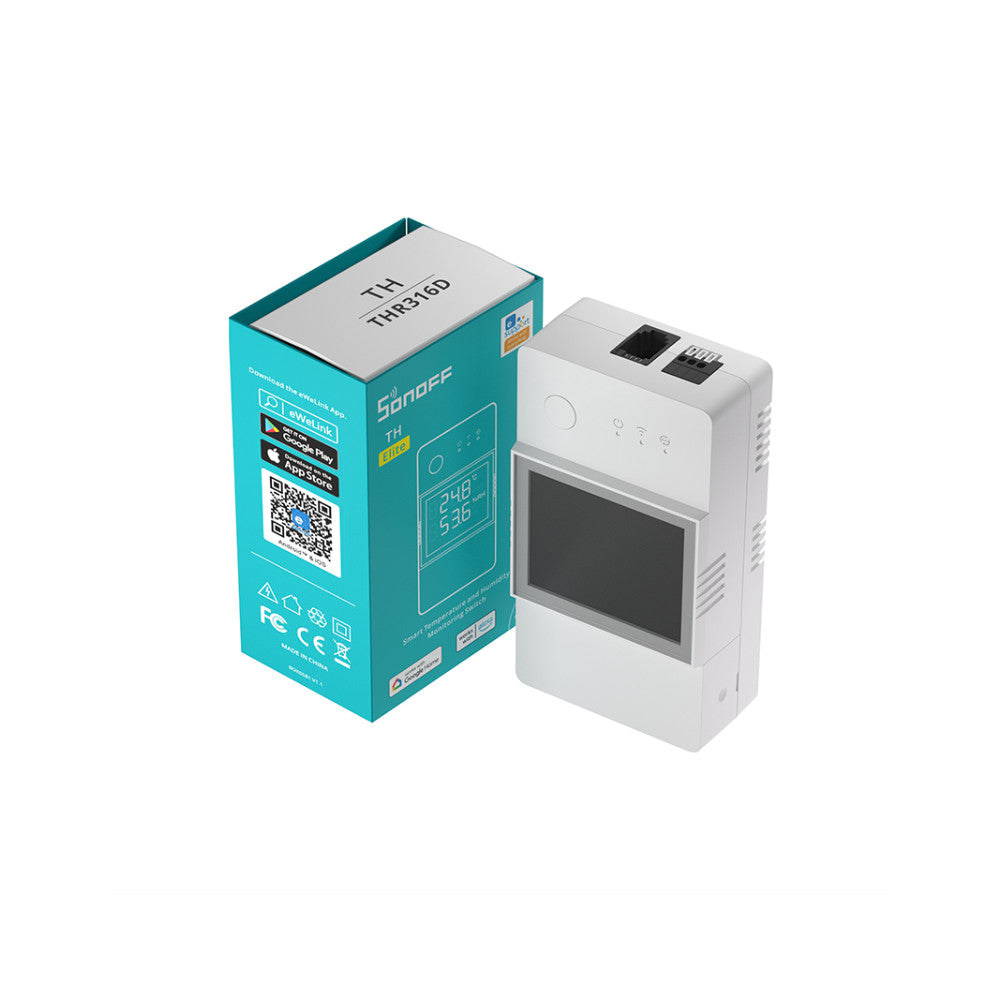

Sonoff TH Elite (the upgrade version of Sonoff TH16) is a Smart Temperature and Humidity monitoring switch based on ESP32 with an LCD screen.

TH Elite keeps monitoring the temperature and humidity in real-time, once they reach your preset threshold or the device's on/off state changes, you will receive the push notification on your phone. Support to connect 20A Max high load equipment like electric floor heating. TH Elite support to review 6-Month Temp & Humidity historical data accurate to the hour. In the smart scene, temperature, humidity, on, off support setting as the trigger, on, off, invert as execute actions. Support adding SONOFF devices to Home Assistant for control and automation through eWeLink add-on. TH Elite turns your traditional thermostat into smart, automates your irrigation system, and gives you an easy way to monitor the temperature and humidity.

The sensor connector is upgraded to RJ9, supporting hot-plugging making the connection more stable and reliable.

The RL560 sensor extension cable can connect the Sonoff temperature and humidity sensors to extend your device's distance.
THS01, WTS01 can be extended to 60M, and MS01 Soil Moisture Sensor can be extended to 10M.

Features

• 20A Max & Dry Contact Output- Support to connect 20A Max high load, dry contact output.
• LCD Screen- Real-time monitoring of temperature and humidity data, the screen refreshes every 5 seconds.
• 6-Month Temp & Humidity Historical Data by Hours- Support to review the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour.
• Local Automatic Control- Support LAN control, automatic control is more reliable. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings.
• Voice Control and Query- Work with Alexa, Google Assistant, you can query temperature and humidity values by your voice.

Specifications

• TH Elite: 20A
• Model: THR320D
• THR320D Input/Output: 100-240V~50/60Hz 20A Max
• Dry contact: 5-30V, 1A Max
• Casing material: PC V0
• Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
• Color: White
