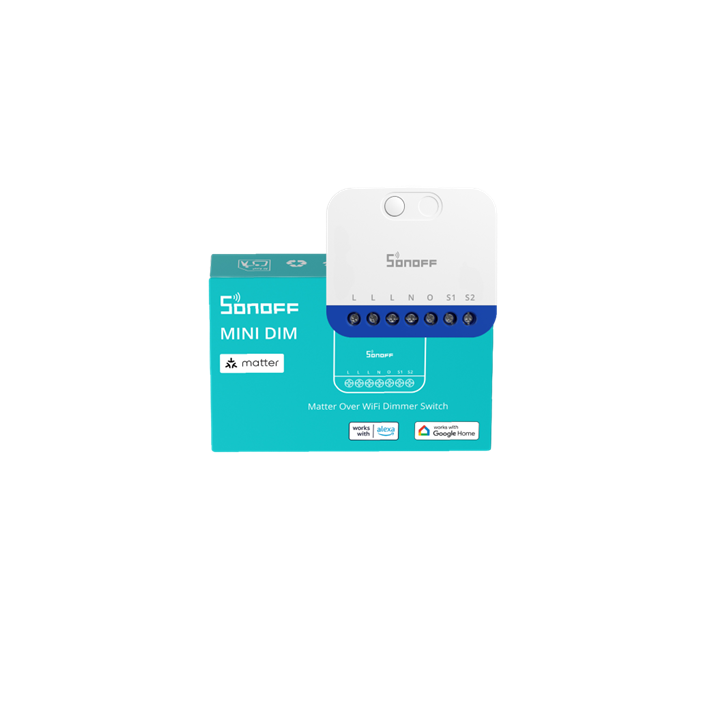

Sonoff Wifi Dimmer

Sonoff Wifi Dimmer

Matter compatibility, it integrates effortlessly into your preferred smart home ecosystem whether it's Apple Home, Google Home, or Amazon Alexa allowing for convenient voice control, automation scenes, and cross-platform flexibility.

Transform your traditional lighting into a smart home experience with the Sonoff Wifi Dimmer. This robust Matter-over-WiFi smart switch is designed to fit easily into your existing mounting boxes. It features advanced trailing-edge dimming technology and automatic calibration.

Beyond simple dimming, the Sonoff Mini Dimmer empowers you with real-time energy monitoring to track usage and optimize efficiency. Safety is paramount with built-in overheat protection that automatically cuts power if temperatures rise too high.

Important Installation Notes:

Professional Install Only: This device must be installed by a certified electrician with IoT & dimming expertise or warrenty is voided.

No Phone Support: Due to the complexity of the wiring, we cannot provide telephonic support.

Certification: South African certification is currently in progress.

Usage Tips

Bulbs: Always use identical dimmable bulbs. Replace all old bulbs at the same time to prevent flickering.

Flicker Fix: Ask your installer to set the minimum brightness to the bulbs' limit + an extra 10% buffer to prevent eye strain.

To control this dimmer with the Sonoff R5 remote, you must have another device with an 'eWeLink-Remote' gateway on your ewelink App (see compatability list below)

Ewelink Remote Sub gateway Device lists:

Smart Switches

• Mini R4 "Extreme" Not Matter version (WiFi Smart Switch)
• Basic R4 (WiFi Smart Switch)
• Dual R3 & Dual R3 Lite (Dual Relay Module)

Wall Switches

• M5 SwitchMan (Physical button smart switch – 120 types)
• T5 / TX Ultimate (Full-touch smart wall switch)

Control Panels

• NSPanel Pro (Smart Home Control Panel)
• NSPanel (Standard Smart Scene Wall Switch)

Bridges

• Zigbee Bridge Ultra
• Sonoff Ihost 4GB

Product Specifications

• Model: MINI-DIM
• Product Series: MINI Extreme series
• Wireless Connectivity: Wi-Fi 2.4GHz
• Rated Voltage: 220-240V ~ 50Hz
• Max Load: 2A
• Load Compatibility:
• Dimmable LEDs: Up to 200VA
• Incandescent/Halogen: Up to 400W
• Electronic Transformers: Up to 200W
• Casing Material: PC (Polycarbonate)
• Working Temperature: -10°C ~ 40°C
• System Support: Matter-enabled (Apple Home, Google Home, Alexa, etc.)
• Certification: CE/FCC/RoHS
• Product Size and weight
• Dimensions: 45 x 39.4 x 16.8 mm
• Net Weight: 24.5g
